Dust Debris Small Compact Dust Collector Air Filtration System

Jetstream - Small Compact Dust Collector

Description
  • Rapidly becoming the standard for small engravers the JetStream offers significant advantages and performance over the competition
  • Maximum airflow 110 CFM with a maximum pressure of 90" W.C.
  • 1 micron pre-filter bag, easily replaced
  • 99.97% effective HEPA filter on particles larger than 0.3 micron
  • Built in silencer reduces noise to 49 dBA
  • Sleek, modern and easily portable
  • Full range speed control
  • CSA/UL approved motors with circuit breaker and thermal cut-out protection
  • Remote on-off communication
  • Optional 6 Gallon (26 l)Knock out bucket for larger debris

Click to enlarge

Available Attachment - Adapter to allow source capture extraction using 1/2" tubing

Filters:

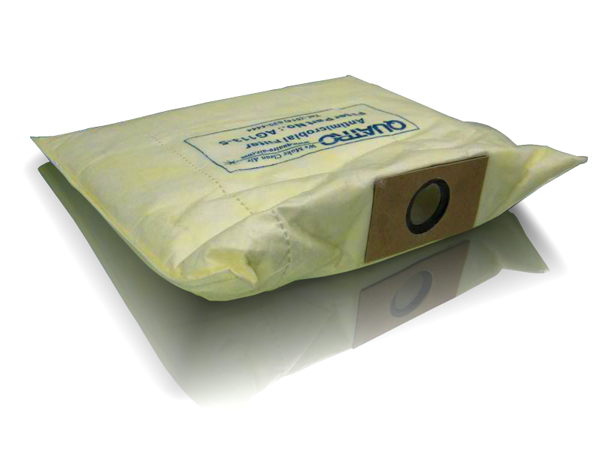

AG113

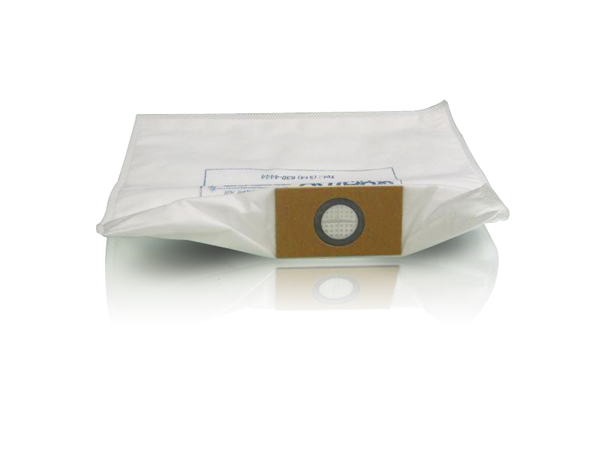

AG143

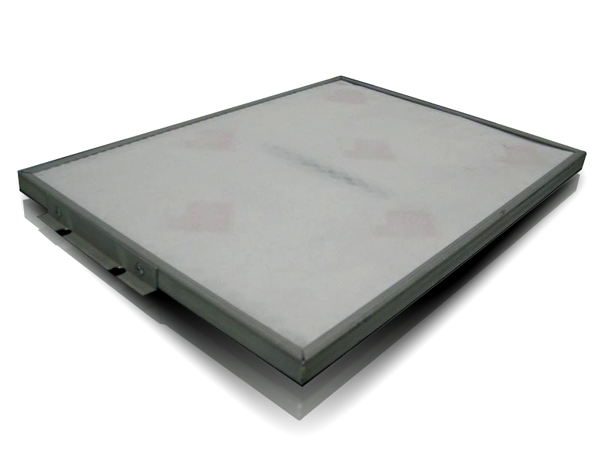

F160

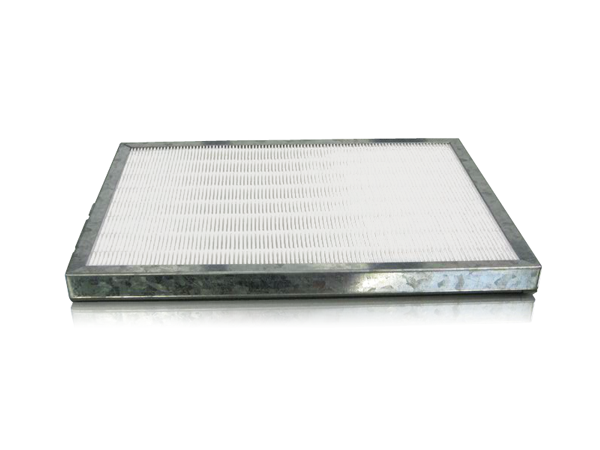

F191S (replaces F190

AG113 / AG143 - Note:

The AG143 allerX bags should be used when dealing with larger dry particulate matter.  If you are working with fine dust then the multi-layer AG113 is more effective at capturing this dust in its various layers without clogging up.
